Meet ImageCue: the most compact media server around
April 4, 2016
FACE for professionals
FACE for MI Resellers
FACE Project Integration
ImageCue is a compact and easy to use media server that provides control of high definition still images and videos with DMX512 control from any lighting console.
ImageCue switches super fast between images and/or video content and users have the possibility to connect any USB flash or harddrive. It supports JPEG or PNG images and H264 video files in MOV, AVI, MPEG or VOB format. ImageCue provides RGB colour mixing and effects for overlays and background and output control via full dimming function. Each ImageCue includes a content library with 255 images and videos.
DMX512 control from any lighting console, HDMI out 1920 x 1080
Support for all popular file types
- Images: PNG, JPEG
- H264 Videos: MOV, AVI, MPEG, VOB
ImageCue is fast
- Fast "bump" switching between images and/or videos
- Images and video display in less than 0,25 seconds
- Cross-fade images from 0,5 to 109 seconds (0,1 second increments)

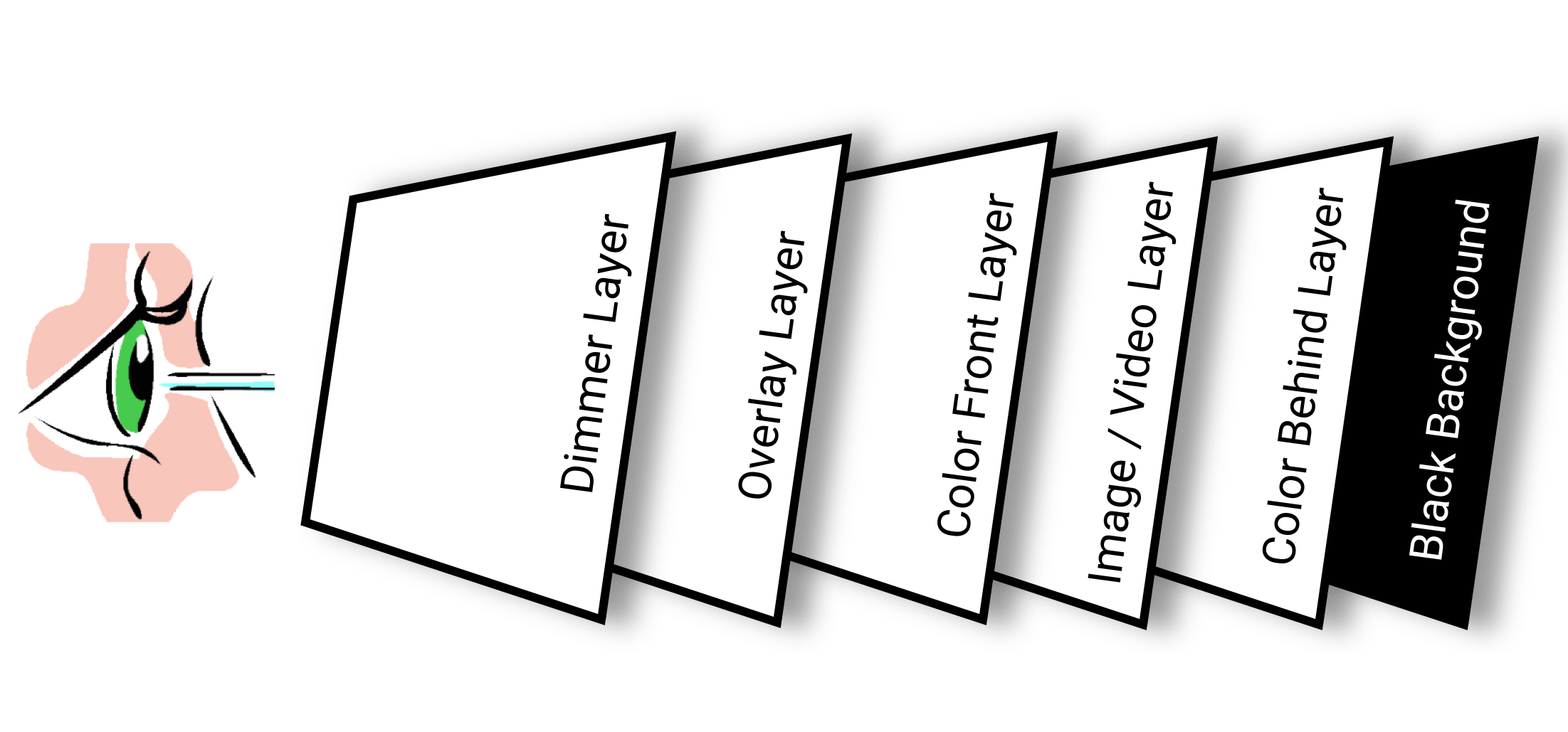

RGB colour mixing and effects for overlays and background
Tech specs
- CPU: 900MHz Quad Core ARM Cortex A7
- RAM: 1GB Ram
- Graphics: VideoCore IV GPU
- NV Memory: 16GB micro SD Card
- OS: Custom Linux Kernel
- USB: 2 USB ports for flash drive or hard drive only
- Video: HD 1920 x 1080p via HDMI connector
- LCD Display: 2 row x 16 alphanumeric characters
