MOTU introduce their first stage box: Stage B16

FACE for professionals

FACE for MI Resellers

FACE Project Integration

Motu is widely known when it comes to building top of the line audio interfaces. With the introduction of their AVB Line-up last year - a series of ultra powerful interfaces that pack the power of a full digital mixing console - the bridge to building a real Digital mixer / Stage box has now been crossed

Motu introduces the B16- a flexible stage box, stand-alone mixer and audio interface with studio-quality analog performance up to 192 kHz, powerful DSP for mixing and effects processing, and connectivity to a digital snake, audio network or host computer through AVB Ethernet or class compliant, high-speed USB 2.0 (compatible with USB 3.0 and iOS).

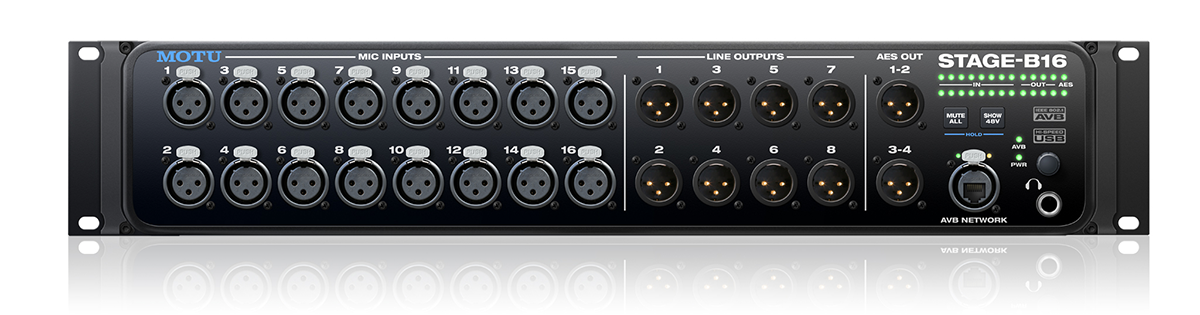

In a sturdy 2-rack space aluminum alloy chassis, Stage-B16 provides 16 front-panel inputs and 12 outputs, including 16 very high-quality mic inputs with individual preamp gain, 8 line-level analog outputs on XLR connectors, 4 channels of AES/EBU digital output and a front-panel headphone jack. All mic inputs also supply individual 48V phantom power and -20 dB pad.

The Stage-B16 is equally well-suited for stage and studio, with or without a computer. Operating as a high-quality stage box, stand-alone mixer or audio interface, Stage-B16 lets you record, monitor, route and process all inputs using the powerful 12-bus on-board digital mixer — with no latency and no processor strain on your computer.

Create up to 7 stereo monitor mixes, 4 mix groups, plus main and monitor mixes. Apply hardware DSP-driven effects processing to inputs, outputs, and busses independent of your host computer. Apply Classic Reverb™, gating, 4-band parametric EQ and vintage compression modeled after the legendary LA-2A™ leveling amplifier.

Add additional Stage-B16 units or other MOTU interfaces as your needs grow, connected to a state-of-the-art audio network using a standard AVB Ethernet switch and CAT-5e cabling, with near-zero network latency, even over long cable runs (100 meters point to point). Record and monitor up to 64 audio channels in and out, simultaneously, to a host computer through USB. Route hundreds of audio channels among multiple devices and computers on the network.

Control all DSP-based mixing and effects, device settings, and network audio routing using your favorite web browser running on your laptop, tablet or smartphone connected wirelessly or locally to the Stage-B16 audio network.

From stage to studio, the Stage-B16 delivers superb sound quality, state-of-the-art operation, and reliable performance.

Features:

Three products in one —

  1. ‍DSP-equipped stage box with AVB Ethernet "digital snake" connectivity
  2. ‍12-bus digital mixer with wireless control
  3. ‍universally compatible audio interface for Mac and Windows

Studio-quality analog performance up to 192 kHz — For example, the XLR analog outputs produce 123 dB dynamic range.

16 studio-grade mic inputs — Each equipped with individual preamps, 48V phantom power and -20dB pad. Also includes eight analog outs on XLRs, 4 channels of AES/EBU output and phones.

On-board 32-bit floating point DSP with large console style mixing and effects — Flexible 48-input digital mixer with 12 stereo busses and DSP effects, including reverb with sends, plus modeled analog EQ and compression, gate, and reverb.

Web app control — Control on-board DSP, mixing, device settings, and network audio routing from innovative web app software running in your favorite browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network.

Stand-alone mixing with wireless control — Connect an Apple Airport™ or other Wi-Fi router directly to the Stage-B16 with a standard Ethernet cable and control the powerful routing, mixing and DSP effects from your smartphone or tablet, without a computer.

System expansion and audio networking — Add a 2nd MOTU AVB interface (1248, 8M or 16A) with a simple Cat-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately). Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (hundreds of meters). Stream hundreds of audio channels among devices and computers on the network.

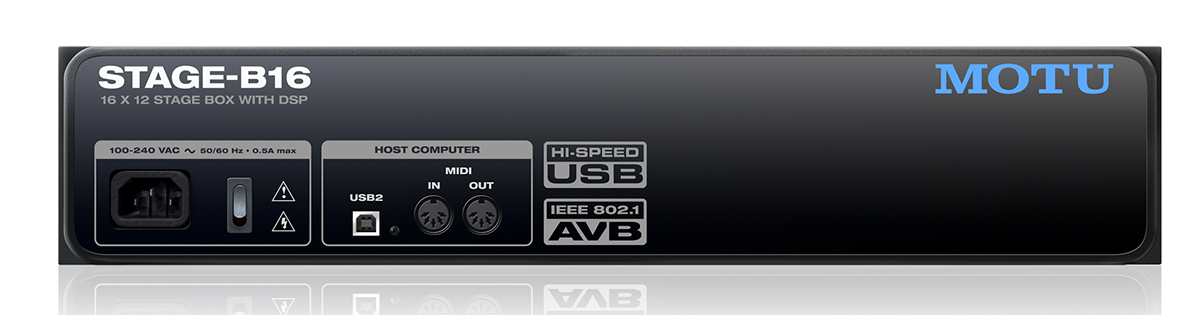

Universal connectivity — Connects to your computer with high-speed USB 2.0 (compatible with USB 3.0). Class-compliant firmware and industry standard drivers work with any audio software.
